Description

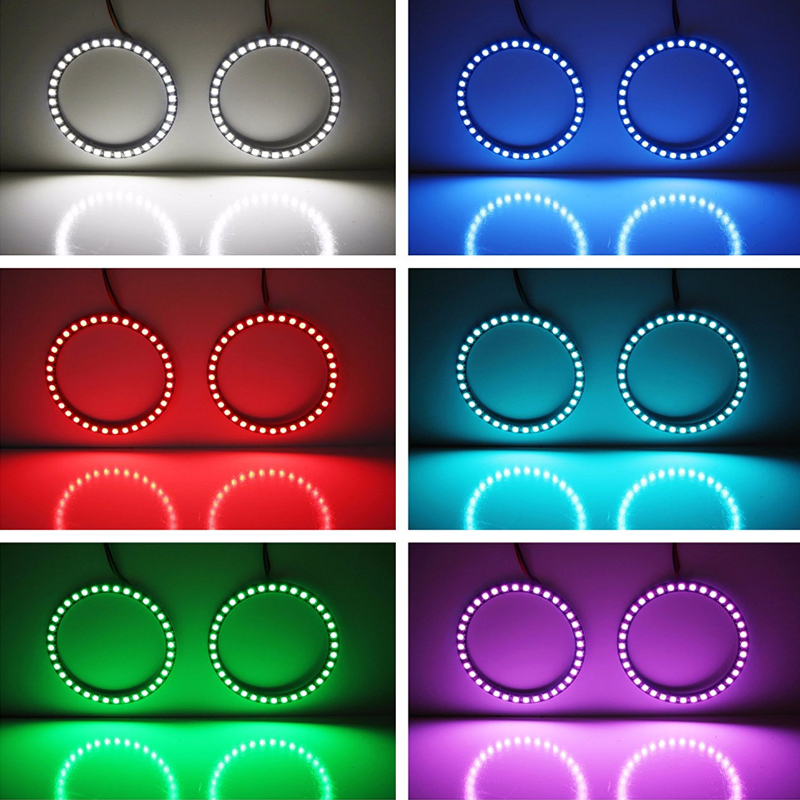

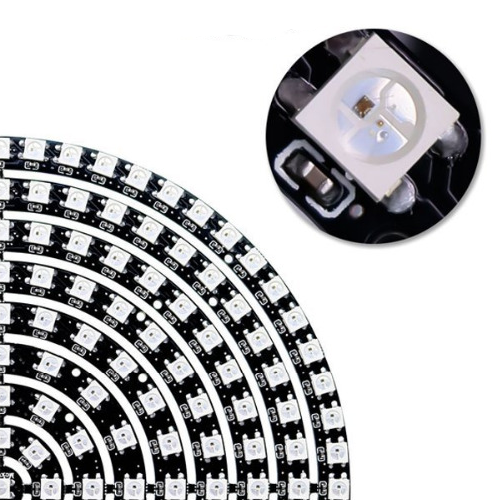

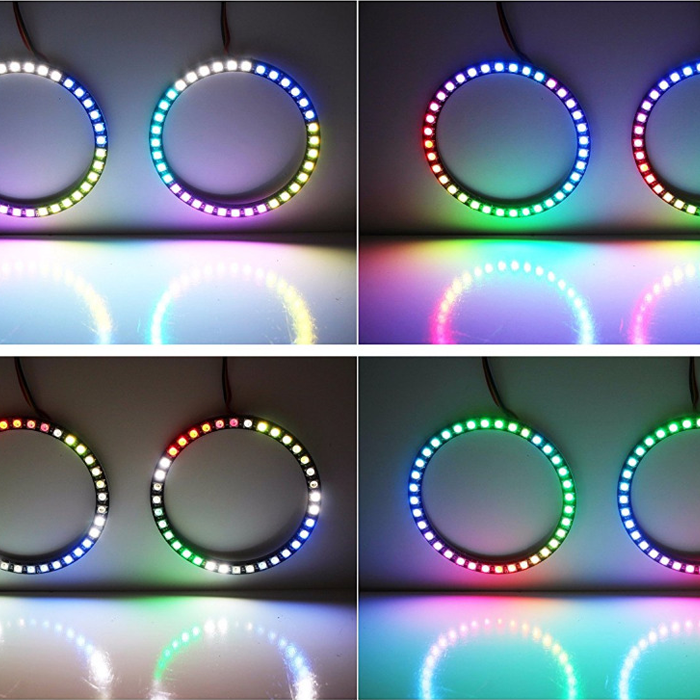

241 ultra bright smart LED NeoPixels are arranged in a circle with 172mm (6.78") outer diameter. The rings are 'chainable' - connect the output pin of one to the input pin of another. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC.
TECHNICAL DETAILS
Beam Angle: 120 degree
IP Rating: Non-Weatherproof
LED Quantity: 60 LEDs
LED Type: 5050 SMD
Operating Voltage Range: 5 VDC
Strip Width: 8mm (0.31in)
Dimmable: Yes
Conductors: 3
Standards And Certifications: ISA Approved, RoHS Compliant
Connection Type: LC3
Thickness: 3mm
LED Lifetime: 30000 Hours
LED Color: RGB
Operating Temperature: -25~+60 °C (-13~+140 °F)
May ship with either WS2812B or SK6812-based LEDs. They are the same brightness, color and protocol
All specifications are subject to change without notice.
