Description

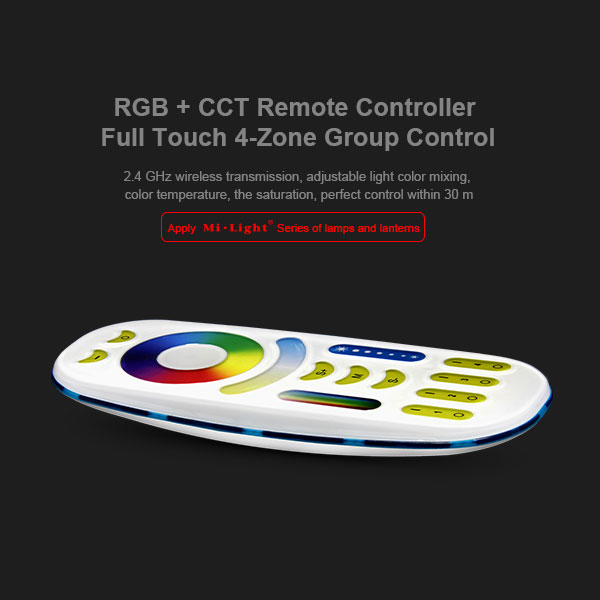

This product adopt world-wide used 2.4GHz frequency, GFSK control method,with the features of low power consumption, long distance transmitting. stronganti-interference and fast comunication rate, can control specified Mi-Light smart light with color, color temperature, saturation and brightness changing.
TECHNICAL DETAILS

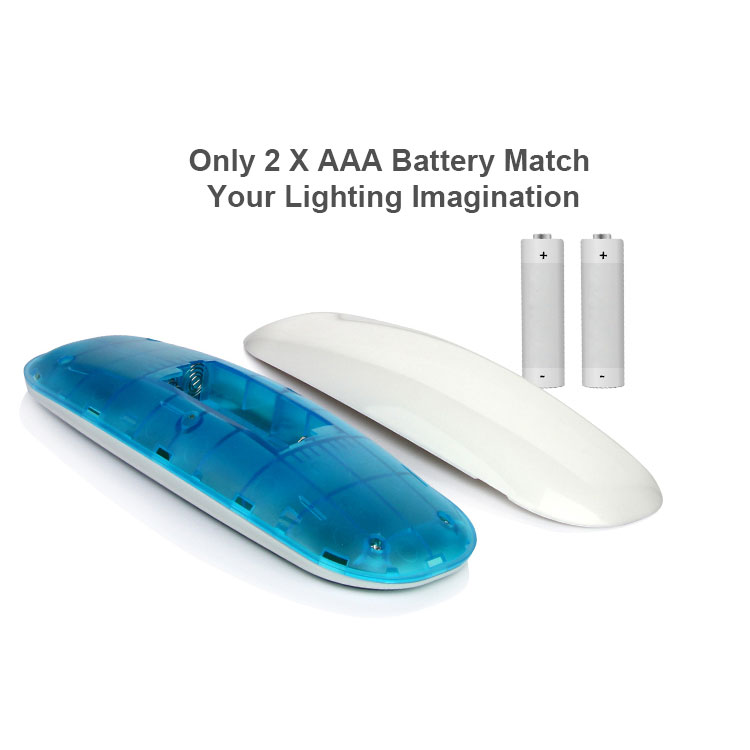

Voltage: 3V(sevtion 2 batteries)

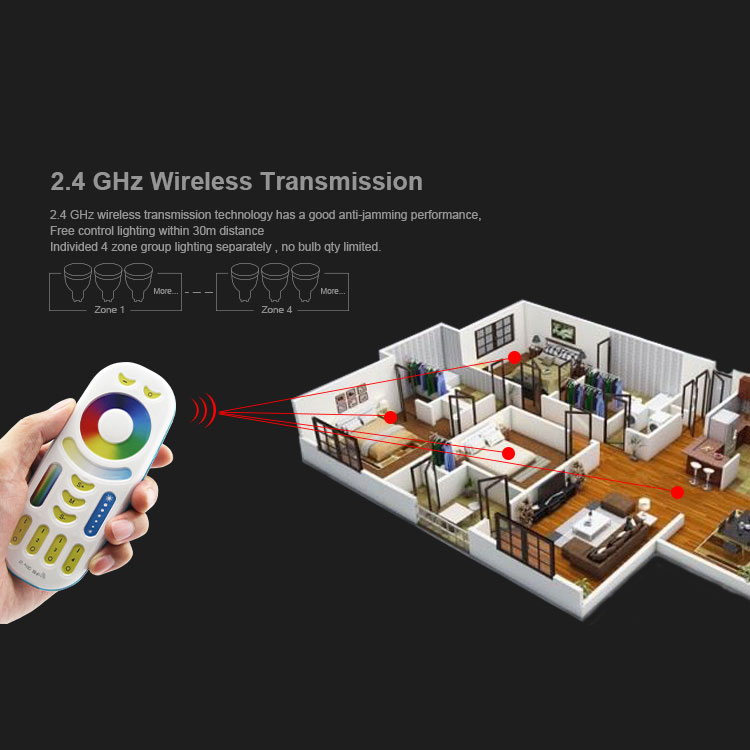

Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standy Power Consumption: 20uA
Control Distance: 30m

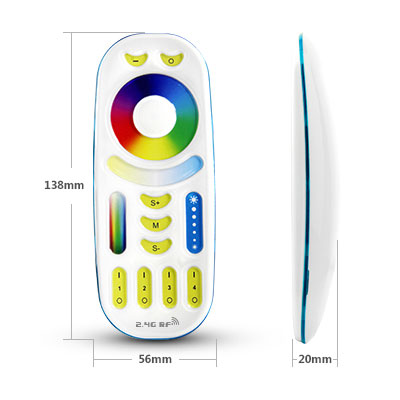

Size: 138*56*38mm
Instruction:
1. Long press "Master OFF" or "Zone OFF" to night light mode.
2. Touch "Color temperature line to white light mode and adjust color temperature.3. Touch "Color Ring to change the colors.
4. Press "Speed+" to acelerate the dynamic mode speed continously until to fastest speed.
5. Press "Speed- to lower the dynamic mode sped continously until to lowest speed.
Link / Unlink:
1. Link: First power off, then power on, within 3 seconds touch any of the Zone-ON button 3 times shortly, the link is done when you see the light blinks 3 times with green color, otherwise try again later.
2. Unlink: First power off, then power on, within 3 seconds touch the linked Zone-ON button or the Master-ON button 5 times shortly, the unlink is done when you see the light blinks 10 times with red color, otherwise try again later.
