Description

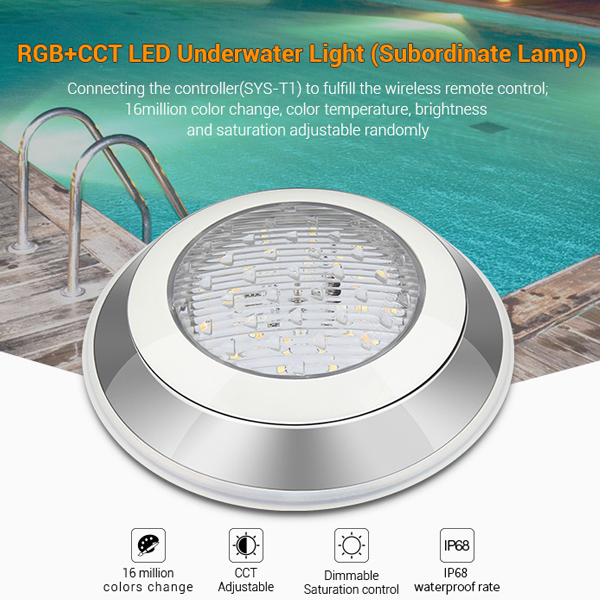

This product is made of high elegant stainless steels and high quality PC cover. We use silicone rubber to seal the light, and pouring by resin to assure the supper waterproofness. waterproof rate is ip68, connecting with host controller (SYS-T1), you can wireless control the 16million color changing, color pool,fishpond,garden pond and spray fountain,etc.
TECHNICAL DETAILS
Input Voltage: DC24V
Power: 12W
Working Temperature: -20~60℃
Color temperature: 2700~6500K
Luminous Flux: 1000LM
Light Efficiency: 85LM/W
CRI: >80
Lifespan: 50000h
Beam Angle: 160°
IP Rate: IP68
Housing Material: Stainless Steel+PC
Dimension:
Connection Diagram
Attention
1.Please check whether the input voltage is in accordance with the lighting working voltage,and please check the connection of both the cathode and anode.
2.The working voltage is DC24V, the lighting will be damage is the voltage is higher than 24V.
3.Non-professional user can not dismantle the controller directly, otherwise it may damage the light.
