Description

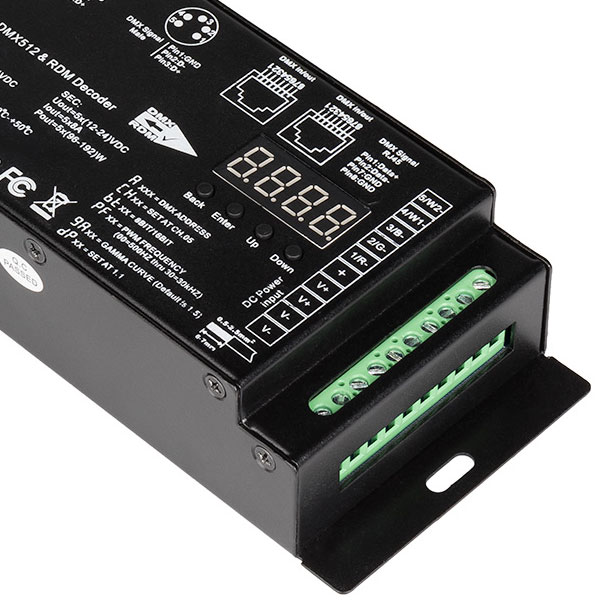

This DMX 512 decoder/RDM controller can control up to 5 different single-color 12-24 VDC LED products, 1 RGBW + CCT light strip, or any 1 RGB or RGBW LED light bar along with 1 or 2 additional single-color products. The decoder can run in stand-alone mode using address code buttons, under DMX512 digital control signals using XLR-5 or RJ45 DMX512 input/output interfaces, or in RDM mode using a device or computer with RDM software. The DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit or 16-bit gray scale output per channel. RDM mode allows 2-way communication between the controller and computer or smart devices. Meets RDM 2009 protocol. Maximum load is 8 amps per channel.
Product Details
Amps
8.00 Amps
Amps Per Channel
8 Amps/CH
Channels
5 Channel
Remote Control
DMX
Input Voltage
12 VDC
Volts
12~24 VDC
Special Features
Custom Colors, Digital Display, RDM Protocol
Operating Temperature
-20~+45 °C (-4~+113 °F)
Color
Black
Package Dimensions
7" (18cm) x 3" (8cm) x 1.5" (4cm)
All specifications are subject to change without notice.
