Home >  Controllers & Dimmers >  K-1000C LED Pixel Controller SD Card Digital RGB LED Dimmer 2048 pixels SPI signal output Support DMX512 WS2811 WS2801 WS2812B etc

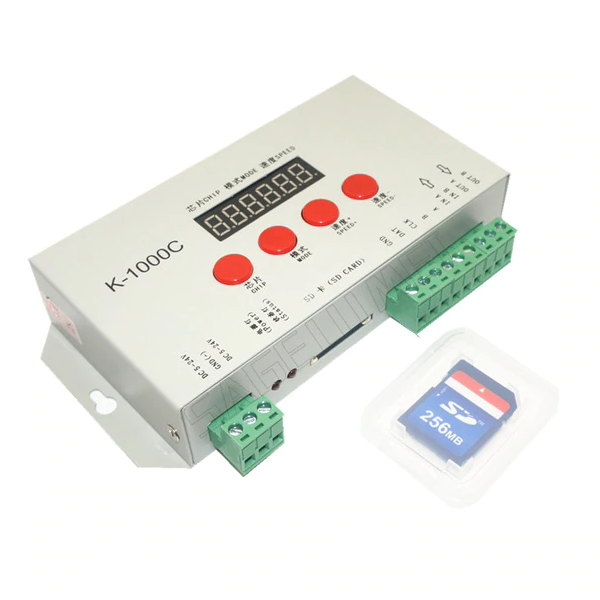

K-1000C LED Pixel Controller SD Card Digital RGB LED Dimmer 2048 pixels SPI signal output Support DMX512 WS2811 WS2801 WS2812B etc

Part Number: LCSD-K1000

$ $39.95 In Stock

$39.95

★ ★ ★ ★ ★
★ ★ ★ ★ ★
write a review


More Views



Stock Status: (over 500 in stock)



Quantity Discounts (Wholesale Pricing)
Please send us an email

Discounts?

Our discount tiers are based on product price and quantity. The product price determines your tier.


Description

1. This K-1000c sd card led controller 2048 pixels is evolution of our classic T-1000s sd card controller.

2. Add a display that customers more prefer.

3. Improve functions that support load lamp is 4 channels (RGBW) pixels, enhanced 485 TTL and 485 differential (DMX) signal output.

4. Controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, more flexible and convenient.

5. Comes with a 256MB SD card included. This version support 2GB sd card that old ones couldn't.

6. For the DMX lighting IC, the controller comes with write address function; In addition, with use of 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

7. Controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

Note: To copy files to SD card, you must first format to the SD card. SD card must be formatted as "FAT" format


Product Details
Product
K1000c programmable sd card led pixel digital controller 2048 pixels
Working voltage
Runs at DC 7.5-24V using an on board voltage regulator;Or can be run off a single DC 5V source if you're running DC 5V led pixel digital srings/ strips
Control led pixels quantity
Drive up to 2048 pixels maximum using 256 brightness levels per color (24 bit color)
Support led pixel effects
Supports all the various rules-shape, special shape processing
Programs quantity
Off-line use can support 16 programmes stored in the SD card
LED pixel Controller software
LEDEdit2014 / Glediator
Multiple programs name form
00_1.led,  01_1.led,  02_1.led,  03_1.led, etc
Choose programs
speed / model
Using buttons on the controller, you can adjust the playback speed and choose the display program. Achieve to save the play list functions
Support our led products
LED pixle lights like amusement led pixel lights,camaleon led pixel lights, etc;LED digital strips like ws2801, ws2812b, ws2811, apa102 rgb pixel digital strips, etc; LED digital modules like ws2801 ,lpd6803 ,ws2811 rgb digital modules, etc;

Note:

1. SD card led pixel digital controller K-1000c port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced.

2.Strong recommend you to connect the led pixel lights quantity no more than 1024 pixels per T1000s pixel controller.

3. Special issue,when you make LED video display, recommend the led pixels quantity no more than 512 pixels.



Compatible with wide range of addressable LED chipsets:

TM1803/TM1804/TM1809/TM1812/TM1825/TM1826/TM1829/TA9909/TA9912/TM1913/TM1914

UCS1903/UCS1912/UCS2903/UCS2909/UCS2912/UCS3903/UCS3912/UCS8903/UCS8904

LPD6803/LPD1886/LPD1882/LPD1889/LPD6812/LPD6813/LPD8806/LPD8809

SM16716/SM16726/SM16711/SM16703

WS2811/WS2801/WS2803/WS2812B/WS2813

LX1003/LX2003/LX2006

INK1003/INK1009

P9813/P9816/D705/9883/P9823

SK6812/SK6812RGBW/SK6822/SK6812mini/SK9822

APA102/APA102C/APA104/APA2020

TLS3001/TLS3008/TLS3100

DMX 500K/DMX 250K-CZF
