Description
Use this flexible LED light strip for cabinet lighting, LED Sign Lighting,LED Backlights,LED Task Lighting,Accent Lighting,Off Grid Lighting,Retail Lighting,Cove LED Lighting Under-Cabinet Lighting,Bias Lighting,LED Display Case Lighting, or for other indoor applications where space is limited. Using 300 enhanced 2835 SMD LEDs, the 8-mm-wide light strip emits up to 1,860 lumens of cool, natural, or warm white illumination. For easy installation, the 16-1/2' reeled LED strip can be cut into 3-LED segments and has a peel-and-stick adhesive backing. This non-weatherproof strip operates within a wide 9-14.8V DC or 24V DC range and is designed to last 30,000 hours.
Features:
Dependable, industry-standard 2835 SMD LEDs
80+ CRI rating ensures vibrant, natural-looking color tones
18 LEDs/ft
12V input for operation with a vehicle; 24V for longer runs
Run 12V strips up to 10m; run 24V strips up to 15m

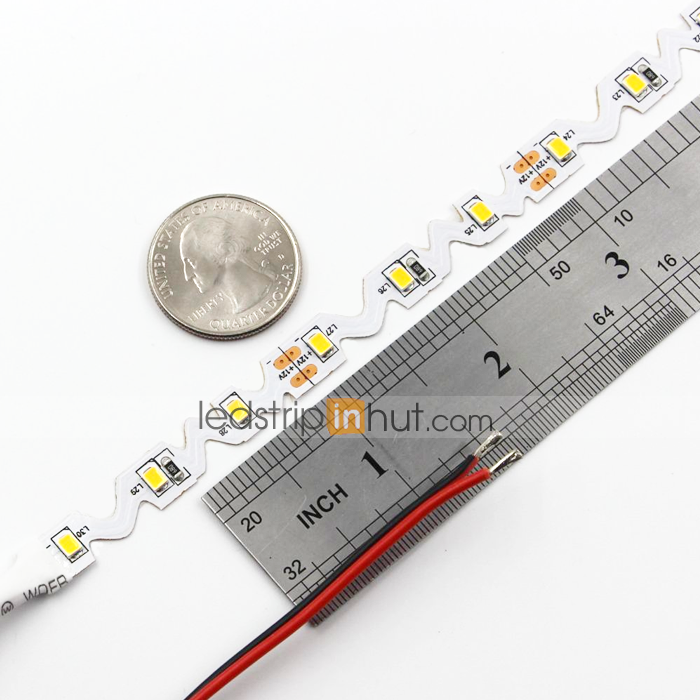

Strip width measures 8mm
Lifetime exceeds 50000 hours
CE certified
Lifetime warranty
Warranties & Certifications
TECHNICAL DETAILS
| Beam Angle | 160 degree | Type | Flexible Light Strips |
|---|---|---|---|
| Dimmable | Yes | IP Rating | Non-Weatherproof IP20 |
| LED Lifetime | 50000 Hours | LED quantity | 300 LEDs |
| Ambient Temperature | -20~+45 °C (-4~+113 °F) | Strip Width | 8mm (0.31in) |
| LED Type | 2835 SMD | LEDs per Segment | 3 |
| Total Length | 196.9in (16.40ft) | Wire Length | 19.5in(49.5cm) |
| SMD Density | 18 SMDs/ft. | Minimum Cut Length | 50mm (2in) |
| Operating Voltage Range | 9~14.8 VDC/ 24 VDC | Length per Segment | 5cm (1.97in) |
| Standards And Certifications | CE/RoHS Compliant/UL Listed | Connection Type | Pigtail /Wire Leads |
| Warranty | 5 Year | Humidity | 40% - 70% RH |
| All specifications are subject to change without notice. | |||
Applications
Task Lighting, LED Sign Lighting, LED Backlights, Accent Lighting, Off Grid Lighting,
Retail Lighting, Automotive Accent Lighting, Cove Lighting, Under-Cabinet Lighting,

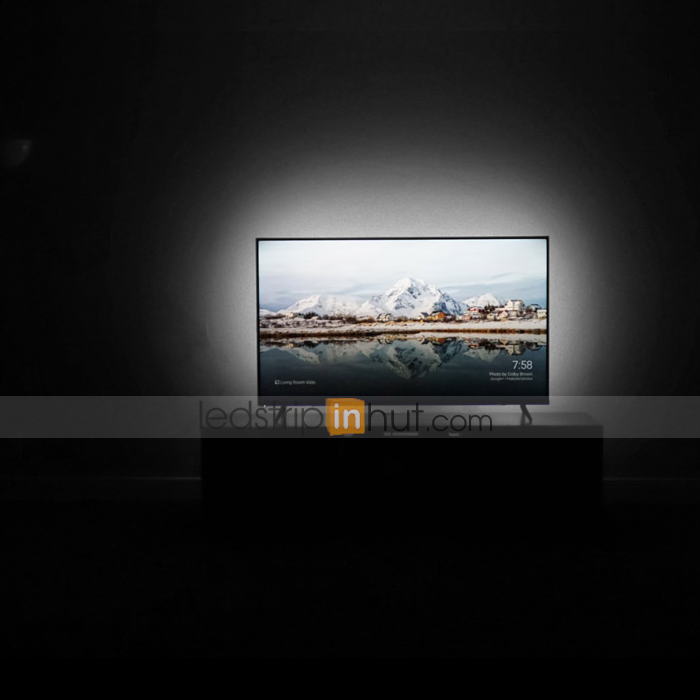

Bias Lighting, LED Display Case Lighting, Trade Show Lighting, TV backlighting.
Why choose LEDStripInHut LED Strip Light
1.PCB board: LEDStripInHut use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Our PCB board are CE, ROHS, UL listed.
2.LED Chip: LEDStripInHut mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, Philips, San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: LEDStripInHut use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: LEDStripInHut always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP65, IP67, IP68 waterproof process, but also new silicone extrusion process for IP67, IP68 and silicone neon technique in dotless frosted encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: LEDStripInHut have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Most of LEDStripInHut led strips are CE, ROHS, cUL and UL listed. We warranty 3-5 years. Welcome to visit our factory, or contact us: ledstripinhut@gmail.com
