Description

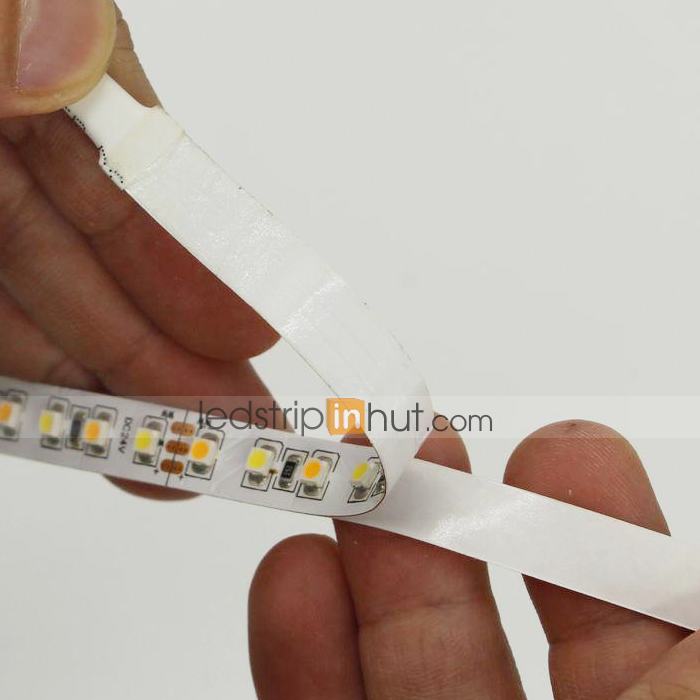

This tunable white LED strip light emits 350 lumens of powerful illumination per foot. Color temperature can be adjusted from 2700K to 6500K with a tunable white controller (sold separately). The 16.4' high-density LED strip light operates on 24 VDC and can be used in longer runs than 12V strips. Easily cut it into separate 12-LED segments and install it with its peel-and-stick 3M™ adhesive backing. This strip is covered by a lifetime warranty. It's great for cabinets, under-cabinet lighting, toe-kicks, coves, bookshelves, or other indoor applications where space is limited.
Warranties & Certifications
TECHNICAL DETAILS
| Beam Angle | 120 degree | LED Density | 36 LEDs/ft. |
|---|---|---|---|
| Dimmable | Yes | IP Rating | Non-Weatherproof IP20 |
| LED Lifetime | 50000 Hours | LED quantity | 600 LEDs |
| Ambient Temperature | -20~+45 °C (-4~+113 °F) | Strip Width | 10mm (0.39in) |

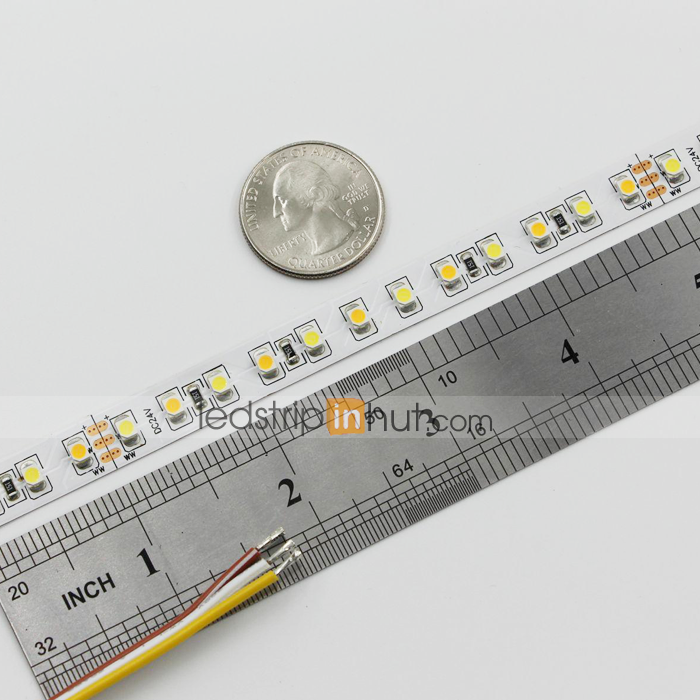

| LED Type | 3528 SMD | LEDs per Segment | 12 |
| Total Length | 196.9in (16.40ft) | Wire Length | 483mm (19in) |
| Color Temperature | 2700~6500 K | Lumen | 5740 Lumen |
| Operating Voltage Range | 24 VDC | CRI | 80+ |
| Standards And Certifications | CE/RoHS Compliant | Connection Type | Pigtail /Wire Leads |
| Warranty | 5 Year | Wattage Total | 69 Watts |
| All specifications are subject to change without notice. | |||
Dimension:
Applications

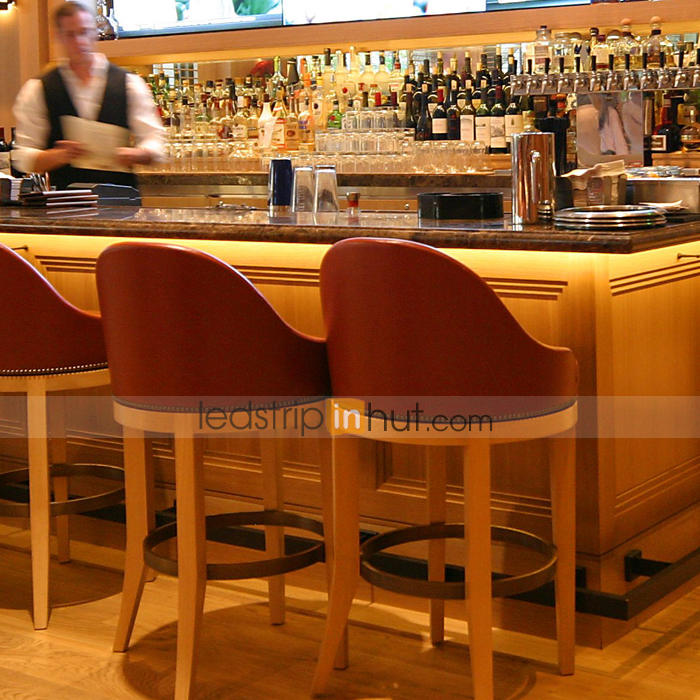

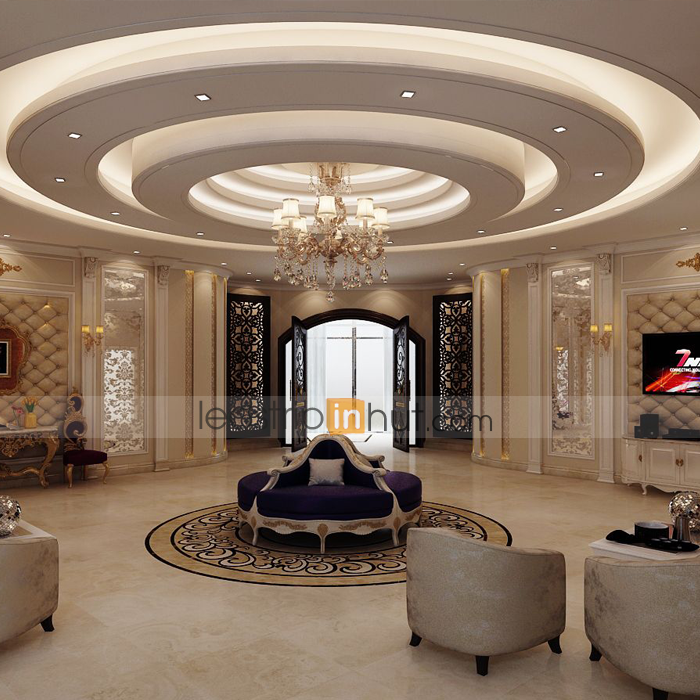

Task Lighting, LED Sign Lighting, LED Backlights, Accent Lighting, Off Grid Lighting,
Retail Lighting, Automotive Accent Lighting, Cove Lighting, Under-Cabinet Lighting,
Bias Lighting, LED Display Case Lighting, Trade Show Lighting, TV backlighting.
Waterproof series
1:Non-waterproof LED Strip: PCB (Printed Circuit Board) with 3M self-adhesive back.--(For Indoor).
2:Waterproof LED Strip--Surface Injection IP65: PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, --(For Outdoor & Indoor).
3:Waterproof LED Strip--Silicon Tube IP67: PCB is encapsulated with silicon tube, with plastic fastener,better waterproof, --(For Outdoor).
4:Waterproof LED Strip--Whole Injection IP68: PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, --(For Outdoor).
Why choose LEDStripInHut LED Strip Light
1.PCB board: LEDStripInHut use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Our PCB board are CE, ROHS, UL listed.
2.LED Chip: LEDStripInHut mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, Philips, San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: LEDStripInHut use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: LEDStripInHut always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP65, IP67, IP68 waterproof process, but also new silicone extrusion process for IP67, IP68 and silicone neon technique in dotless frosted encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: LEDStripInHut have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Most of LEDStripInHut led strips are CE, ROHS, cUL and UL listed. We warranty 3-5 years. Welcome to visit our factory, or contact us: ledstripinhut@gmail.com
