Description

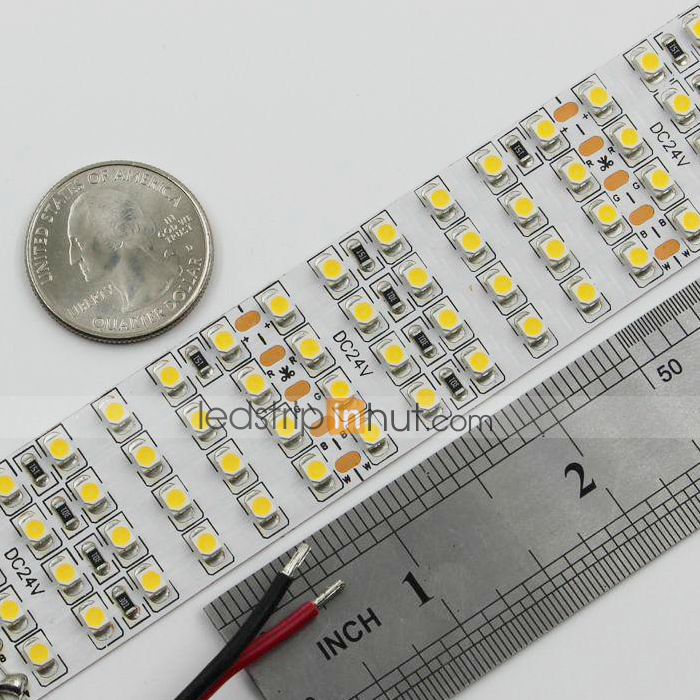

OUR BRIGHTEST FLEXIBLE LIGHT STRIP - UP TO 13,000 LUMEN. 4NFS-x2400-24V series quad row flexible LED light strip. 4.8 meters (189 inches) long with quadruple-row array of 2400 high power 1-chip 3528SMD LEDs can be cut into 24-LED segments. 24VDC operation.
Features:
Dependable, industry-standard 3528 SMD LEDs
80+ CRI rating ensures vibrant, natural-looking color tones
12V input for operation with a vehicle; 24V for longer runs
Run 12V strips up to 10m; run 24V strips up to 15m
Strip width measures 28mm
Lifetime exceeds 50000 hours
CE certified
Lifetime warranty
Warranties & Certifications
TECHNICAL DETAILS
| Beam Angle | 180 degree | Type | Flexible Light Strips |
|---|---|---|---|
| Dimmable | Yes | IP Rating | Non-Weatherproof IP20 |
| LED Lifetime | 50000 Hours | LED quantity | 2400 LEDs |
| Ambient Temperature | -20~+45 °C (-4~+113 °F) | Strip Width | 28mm (1.10in) |
| LED Type | 3528 SMD | LEDs per Segment | 24 |
| Total Length | 196.9in (16.40ft) | Wire Length | 13.5in(34.3cm) |
| Max Run | 1 | Lumen (Max) | 13938 Lumen |
| Operating Voltage Range | 24 VDC | Suitable for Vehicles | No |
| Standards And Certifications | CE/RoHS Compliant | Connection Type | Pigtail /Wire Leads |
| Warranty | 5 Year | Polarized | No |
| All specifications are subject to change without notice. | |||
Dimension:

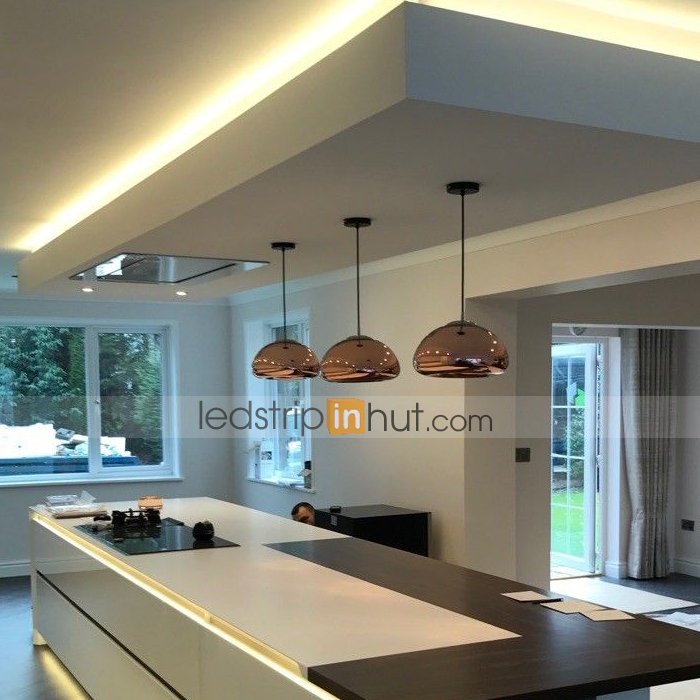

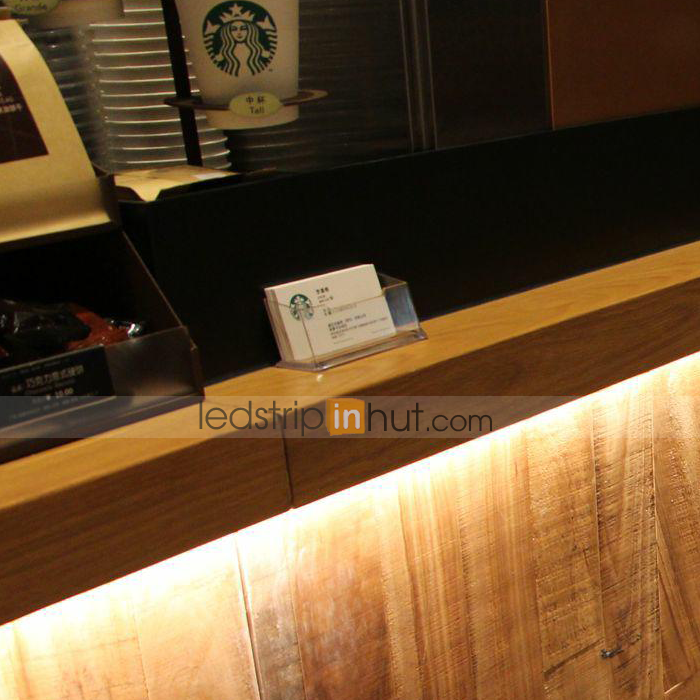

Applications
Task Lighting, LED Sign Lighting, LED Backlights, Accent Lighting, Off Grid Lighting,
Retail Lighting, Automotive Accent Lighting, Cove Lighting, Under-Cabinet Lighting,
Bias Lighting, LED Display Case Lighting, Trade Show Lighting, TV backlighting.
Why choose LEDStripInHut LED Strip Light
1.PCB board: LEDStripInHut use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Our PCB board are CE, ROHS, UL listed.
2.LED Chip: LEDStripInHut mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, Philips, San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: LEDStripInHut use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: LEDStripInHut always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP65, IP67, IP68 waterproof process, but also new silicone extrusion process for IP67, IP68 and silicone neon technique in dotless frosted encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: LEDStripInHut have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Most of LEDStripInHut led strips are CE, ROHS, cUL and UL listed. We warranty 3-5 years. Welcome to visit our factory, or contact us: ledstripinhut@gmail.com
