Description

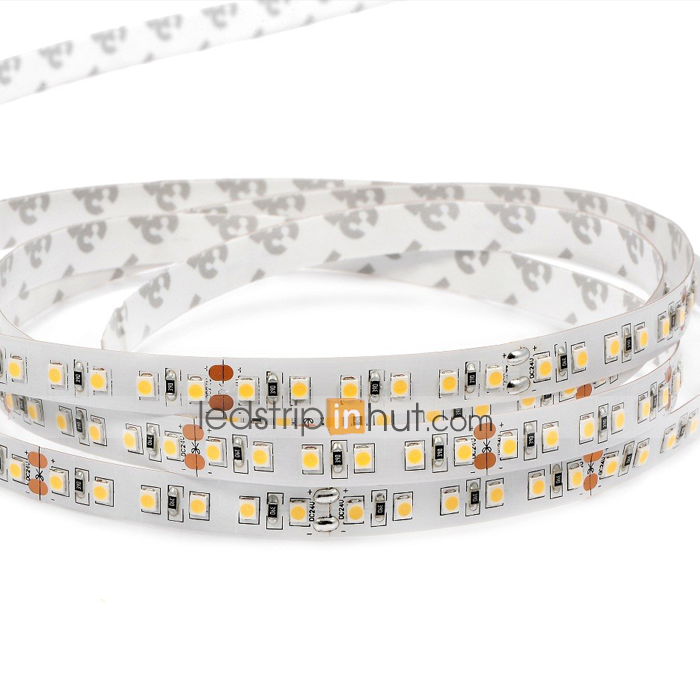

This flexible LED light strip operates on 24 VDC and can be used in longer runs than 12V strips. It emits 335 lumens of cool, natural, or warm white illumination per foot. And with a high CRI (color-rendering index) of 92, light from the LEDs will show the true colors of any object or surrounding. The 16.4' high-density LED tape light can be easily cut into separate 6-LED segments and installed with its peel-and-stick 3M™ adhesive backing. This strip is covered by a lifetime warranty. It's great for retail shops, jewelry cases, supermarkets, food and meat cases, museums, galleries, videography, under-cabinet lighting, or any indoor application where presentation, appearance, and depth of color are critical. See standard density.
Features:
90+ CRI rating ensures vibrant, natural-looking color tones
36 LEDs/ft
Strip width measures 4mm
24 VDC input
Maximum run of 15m
Lifetime exceeds 50000 hours
CE certified and UL listed
Lifetime warranty
Warranties & Certifications
TECHNICAL DETAILS
| Beam Angle | 120 degree | Type | Flexible Light Strips |
|---|---|---|---|
| Dimmable | Yes | IP Rating | Non-Weatherproof IP20 |
| LED Lifetime | 50000 Hours | LED quantity | 600 LEDs |
| Ambient Temperature | -20~+45 °C (-4~+113 °F) | Strip Width | 10mm (0.39in) |
| LED Type | 2835 SMD | LEDs per Segment | 3 |
| Total Length | 196.9in (16.40ft) | Wire Length | 508mm (20in) |
| SMD Density | 36 SMDs/ft. | Minimum Cut Length | 50mm (2in) |
| Operating Voltage Range | 24 VDC | Special Features | High CRI |
| Standards And Certifications | CE/RoHS Compliant/UL Listed | Connection Type | Pigtail /Wire Leads |
| CRI | 90+ | Brightness | 335 lm/ft (1099 lm/m) |
| All specifications are subject to change without notice. | |||
Dimension:
Applications
Task Lighting, LED Sign Lighting, LED Backlights, Accent Lighting, Off Grid Lighting,
Retail Lighting, Automotive Accent Lighting, Cove Lighting, Under-Cabinet Lighting,
Bias Lighting, LED Display Case Lighting, Trade Show Lighting, TV backlighting.
Waterproof series
1:Non-waterproof LED Strip: PCB (Printed Circuit Board) with 3M self-adhesive back.--(For Indoor).
2:Waterproof LED Strip--Surface Injection IP65: PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, --(For Outdoor & Indoor).
3:Waterproof LED Strip--Silicon Tube IP67: PCB is encapsulated with silicon tube, with plastic fastener,better waterproof, --(For Outdoor).
4:Waterproof LED Strip--Whole Injection IP68: PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, --(For Outdoor).
Why choose LEDStripInHut LED Strip Light
1.PCB board: LEDStripInHut use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Our PCB board are CE, ROHS, UL listed.
2.LED Chip: LEDStripInHut mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, Philips, San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: LEDStripInHut use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: LEDStripInHut always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP65, IP67, IP68 waterproof process, but also new silicone extrusion process for IP67, IP68 and silicone neon technique in dotless frosted encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: LEDStripInHut have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Most of LEDStripInHut led strips are CE, ROHS, cUL and UL listed. We warranty 3-5 years. Welcome to visit our factory, or contact us: ledstripinhut@gmail.com
